Relay

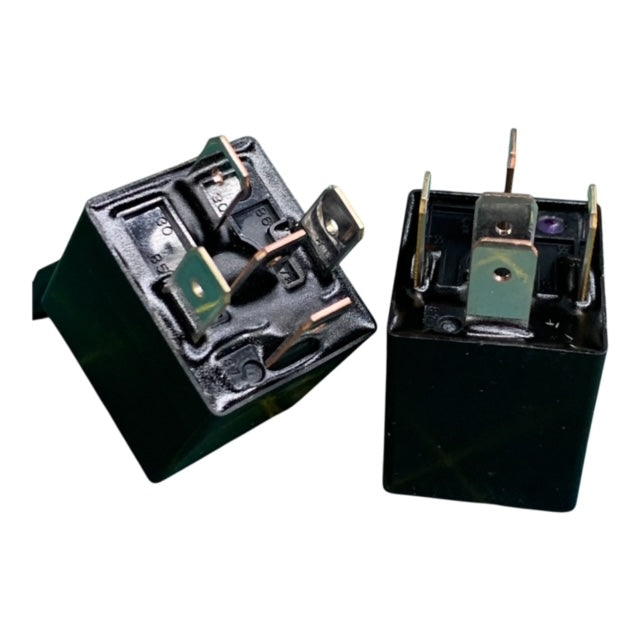

Panasonic 40A Sealed Relay

• SDI OEM part # 410113604
• Carb OEM part # 410113200

Battery not charging on an e-start carb SkiDoo Rev? No headlights, gauges, warmers etc on a manual start carb model or SDI? Plus a ton of other electrical issues can be attributed to a bad relay depending on the model.

This thread on DooTalk is an excellent resource of information about the relays and issues they can cause.  https://www.dootalk.com/threads/mythbusters-rev-relays.225411/

Manual start SDI models use 3 relays, electric start SDI models use 2 relays and the liquid cooled carb models use 1 relay. These are the same Panasonic relays that the sleds came with.

Carb models have the relay mounted above the secondary clutch/air box under the console, and under the hood in the fuse box on the SDI models.

Always smart to have a spare one on hand!
